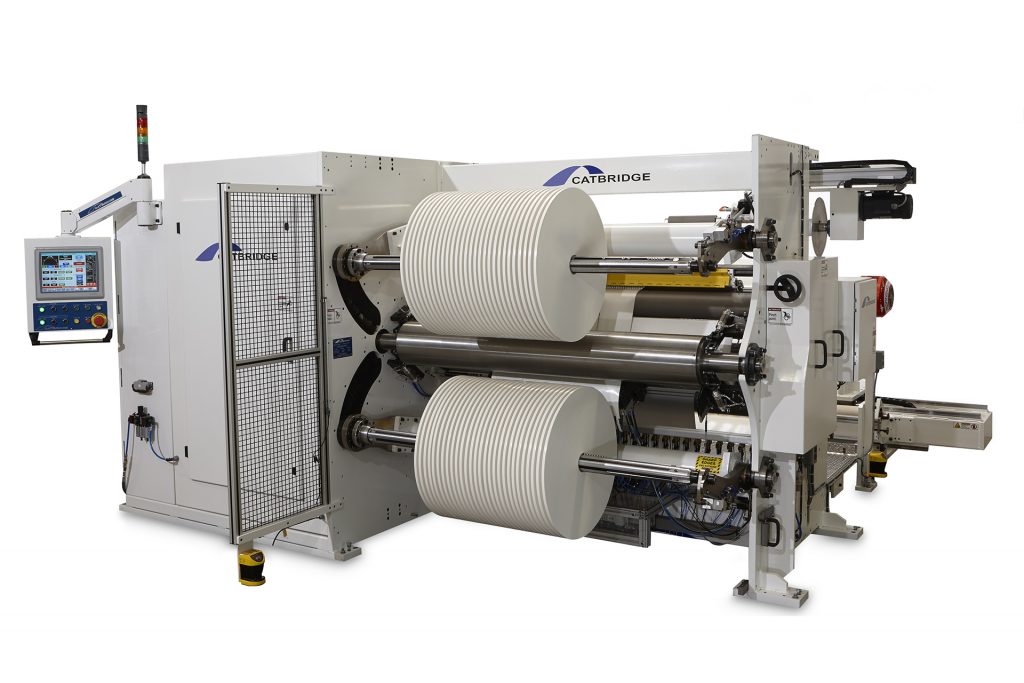

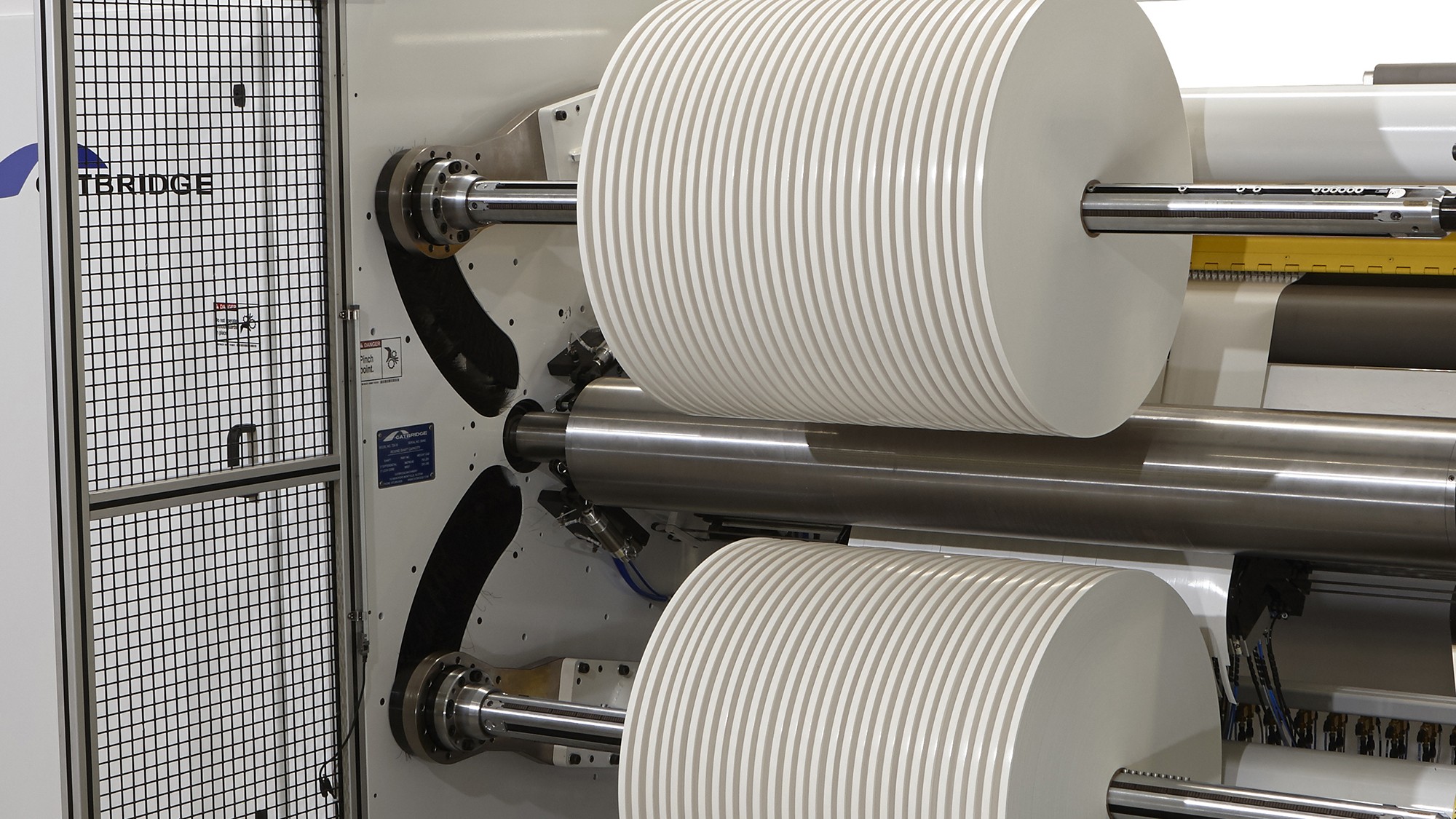

Model 729-32 Duplex Slitter Rewinder

The 729-32 slitter, often heralded as the ‘Swiss Army Knife’ of slitters, offers unparalleled versatility and power for your converting needs. Designed to handle a diverse range of materials, including pressure-sensitive and narrow-width applications, this machine integrates cutting-edge technology to enhance productivity and deliver superior quality results.

Widely used across various industries, the 729-32 slitter excels in processing pressure-sensitive materials and other narrow-width applications. This user-friendly machine features an ergonomic design and a short web path from slit to rewind, streamlining cut-off and strand alignment at the core. With capabilities like center, and center minimum gap winding, coupled with auto knife placement and advanced technologies, the 729-32 significantly boosts productivity and ensures top-notch finished roll quality.

General Specifications

Rewind diameter: 24 or 32” (610 or 813 mm)
Web width: to 84” (2137 mm)
Web speed: to 1500 fpm (457 m/min)
Min slit width: 1/2” (13 mm)

Standard Features
  • Score, shear, razor, burst or hot knife slitting
  • Cantilevered differential or lock-core rewind shafts
  • Center surface and center wind with minimum gap modes
  • Automatic taper tension control
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Automatic knife positioning
  • Semi-automatic knife positioning
  • Removable slitting sections
  • Bowed roll
  • Closed-loop tension control
  • Static neutralizer
  • Dual durometer layon rolls
  • Non-stick idlers for pressure sensitives
  • Traversing trim winders and trim removal systems
  • Liner winders
  • Sound enclosures
  • Camera system
  • Integral, variable cross-web perforating
  • Drop-in turrets for small roll diameters
  • Roll pushers and unloading trees
Common Applications
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Rubber laminations
  • Pressure sensitive foams

Download The 729-32 Product Sheet

Download the 729-32 Product Sheet to explore its full specifications and see how it can revolutionize your productivity and roll quality.
