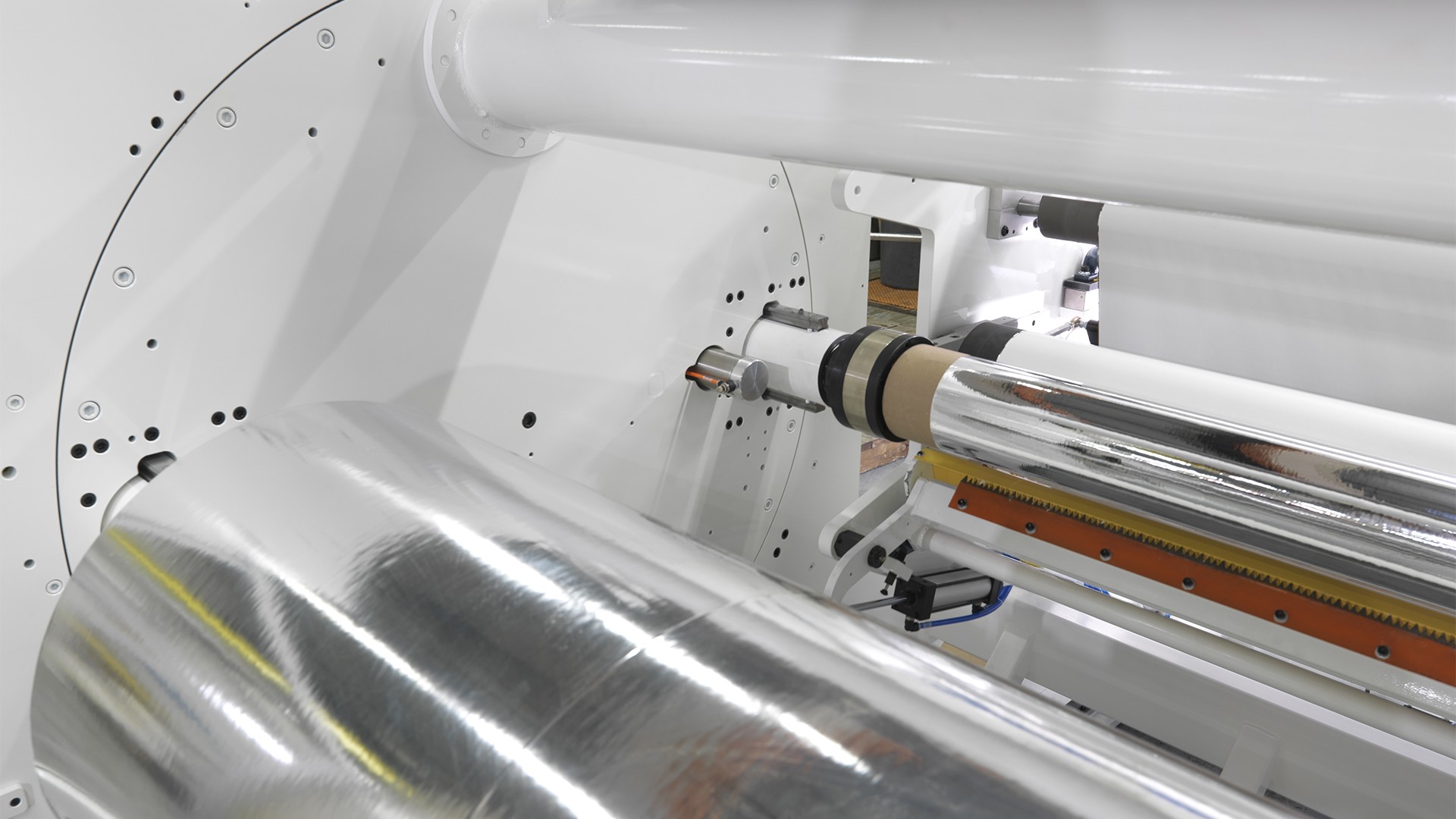

Model 324-C Continuous Turret Center Rewinder

This continuous turret center winder can be used in a process line. Available with a shafted or shaftless design, the 324C offers bump and cut transfer or an inline accumulator for zero speed transfers, with no foldover at the core, and a clean last wrap. The 324C meets demanding material and tension requirements and can produce top quality, consumer-ready rolls. This continuous winder handles a variety of materials and has fully automatic finished roll transfer.

General Specifications

Rewind diameter: 18 or 40” (450 or 1010 mm)
Web width: to 84” (2130 mm)
Line speed: to 1500 fpm (457 m/min)

Standard Features
  • Lock-core winding
  • Linear tracking lay-on rolls
  • Automatic cutoff and transfer
  • Remote support, recipe control
  • Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and density, data logging and remote support
  • Safety PLC, guards, and sensors
Optional Features
  • Offset pivot or other web entry guiding
  • Accumulator
  • Mimimum gap winding
  • Larger rewind diameter
  • 3 to 12″ shafts (76 to 304 mm)
  • Driven and/or carbon-fiber rolls
  • Greater speeds subject to materials
  • Camera systems and other inspection capabilities
  • Trim removal systems
  • Various roll unloading options
Common Applications
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Thermal transfer films
  • Thermal transfer papers
